Browning Street; Ram Truss Bridge

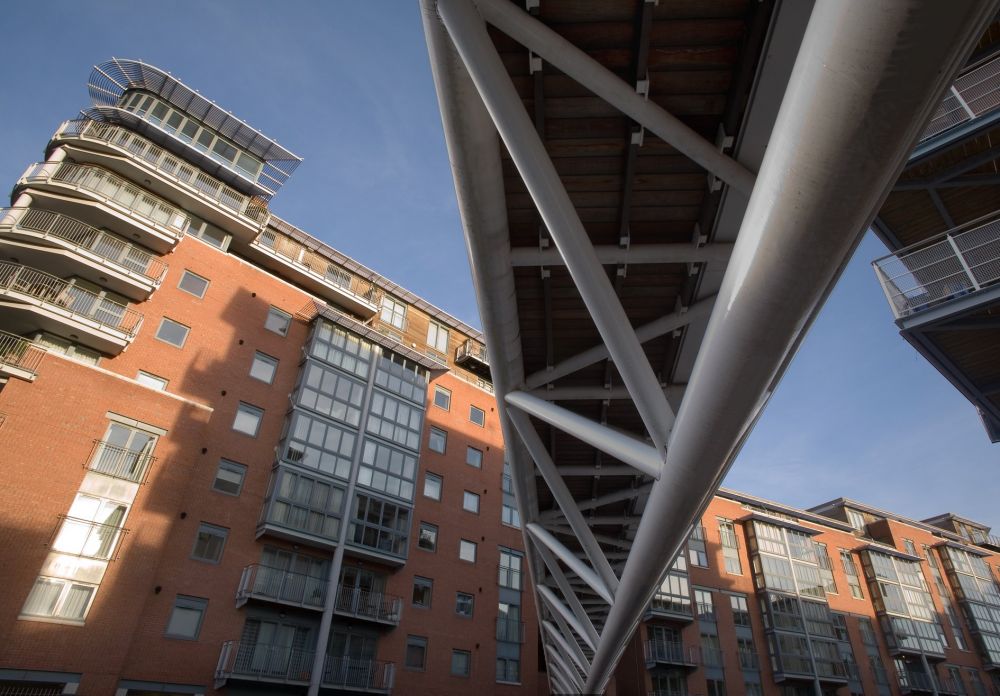

The tubular steel truss superstructure provides an attractive and lightweight solution adding much to the canal regeneration project in Birmingham. Designed, manufactured and installed by CTS the bridge spans 45m across the canal
Our attention to detail at the support points resulted in an elegant connection detail which met the clients’ aspirations. The complex geometry to achieve this detail, resulting from the bottom tension chord bifurcation to the top compression sections as a continuous joint, was carefully detailed by our bridge engineers at early design stage to ease fabrication.
Dimensions
Length 45m
Clear width 2m
Client
Norwest Holst
Location
Birmingham
